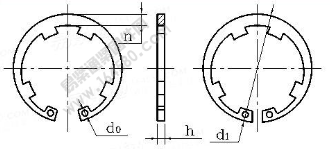

DIN 984-D2000-JK-1981 帶齒孔用擋圈
責任編輯：泰強不銹鋼
作者：泰強不銹鋼
人氣：
發表時間:2015-08-20 17:03
| 公稱直徑 | h | d1 | n min | d0 min | 每1000件鋼制品的質量≈kg | ||
| 公稱 | 公差 | 公稱 | 公差 | ||||
| 16 | 1 | 0 -0.05 | 17.3 | ﹢0.36 -0.1 | 2 | 1.7 | 0.72 |
| 17 | 1 | 18.3 | ﹢0.42 -0.13 | 2.1 | 1.7 | 0.8 | |
| 18 | 1 | 19.5 | 2.2 | 1.7 | 0.9 | ||
| 19 | 1 | 20.5 | 2.2 | 2 | 0.99 | ||
| 20 | 1 | 21.5 | 2.3 | 2 | 1.06 | ||
| 22 | 1 | 23.5 | 2.5 | 2 | 1.28 | ||
| 23 | 1.2 | 24.6 | ﹢0.42 -0.21 | 2.6 | 2 | 1.48 | |
| 24 | 1.2 | 25.9 | 2.6 | 2 | 1.6 | ||
| 25 | 1.2 | 26.9 | 2.7 | 2 | 1.72 | ||
| 26 | 1.2 | 28.5 | 2.8 | 2 | 2 | ||
| 27 | 1.2 | 29.1 | ﹢0.5 -0.25 | 2.9 | 2 | 2 | |
| 28 | 1.2 | 30.1 | 2.9 | 2 | 2.1 | ||
| 30 | 1.2 | 32.1 | 3 | 2 | 2.35 | ||
| 32 | 1.2 | 34.4 | 3.2 | 2.5 | 2.5 | ||
| 35 | 1.5 | 37.8 | 3.4 | 2.5 | 4 | ||
| 36 | 1.5 | 38.8 | 3.5 | 2.5 | 4.15 | ||
| 38 | 1.5 | 40.8 | 3.7 | 2.5 | 4.4 | ||
| 40 | 1.75 | 43.5 | ﹢0.9 -0.39 | 3.9 | 2.5 | 5.3 | |
| 42 | 1.75 | 45.5 | 4.1 | 2.5 | 6 | ||
| 44 | 1.75 | 47.5 | 4.2 | 2.5 | 6.45 | ||
| 45 | 1.75 | 43.5 | 4.3 | 2.5 | 6.6 | ||
| 47 | 1.75 | 50.5 | ﹢1.1 -0.45 | 4.4 | 2.5 | 6.9 | |
| 48 | 1.75 | 51.5 | 4.5 | 2.5 | 7.5 | ||
| 50 | 2 | 0 -0.07 | 54.2 | 4.6 | 2.5 | 8.5 | |
| 52 | 2 | 56.2 | 4.7 | 2.5 | 9.4 | ||
| 55 | 2 | 0 -0.07 | 59.2 | ﹢1.1 -0.45 | 5 | 2.5 | 9.75 |
| 57 | 2 | 61.2 | 5.1 | 2.5 | 11.6 | ||
| 58 | 2 | 62.2 | 5.2 | 2.5 | 12 | ||
| 60 | 2 | 64.2 | 5.4 | 2.5 | 12.7 | ||
| 62 | 2 | 66.2 | 5.5 | 2.5 | 12.8 | ||
| 65 | 2.5 | 69.2 | 5.8 | 3 | 16.7 | ||
| 67 | 2.5 | 71.5 | 6 | 3 | 18.6 | ||
| 68 | 2.5 | 72.5 | 6.1 | 3 | 19.3 | ||
| 70 | 2.5 | 74.5 | 6.2 | 3 | 20.2 | ||
| 72 | 2.5 | 76.5 | 6.4 | 3 | 21.2 | ||
| 75 | 2.5 | 79.5 | 6.6 | 3 | 22.6 | ||
| 80 | 2.5 | 85.5 | ﹢1.3 -0.54 | 7 | 3 | 25 | |
| 85 | 3 | 0 -0.08 | 90.5 | 7.2 | 3.5 | 30.1 | |
| 90 | 3 | 95.5 | 7.6 | 3.5 | 35.5 | ||
| 95 | 3 | 100.5 | 8.1 | 3.5 | 40 | ||
| 100 | 3 | 105.5 | 8.4 | 3.5 | 43.5 | ||
| 110 | 4 | 0 -0.1 | 117 | ﹢1.5 -0.63 | 9 | 3.5 | 73 |
| 115 | 4 | 122 | 9.3 | 3.5 | 82 | ||
| 120 | 4 | 127 | 9.7 | 3.5 | 87 | ||
| 125 | 4 | 132 | 10 | 4 | 92 | ||
| 130 | 4 | 137 | 10.2 | 4 | 102 | ||
| 140 | 4 | 147 | 10.7 | 4 | 112 | ||
| 150 | 4 | 158 | 11.2 | 4 | 123 | ||
| 160 | 4 | 169 | 11.6 | 4 | 133 | ||
| 170 | 4 | 179.5 | 12.2 | 4 | 145 | ||
